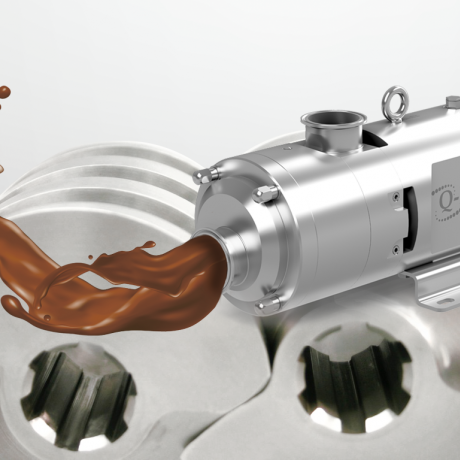

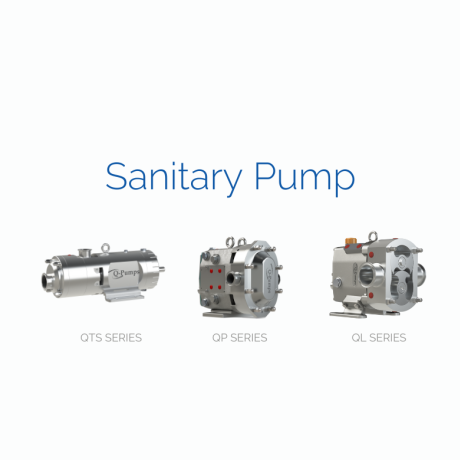

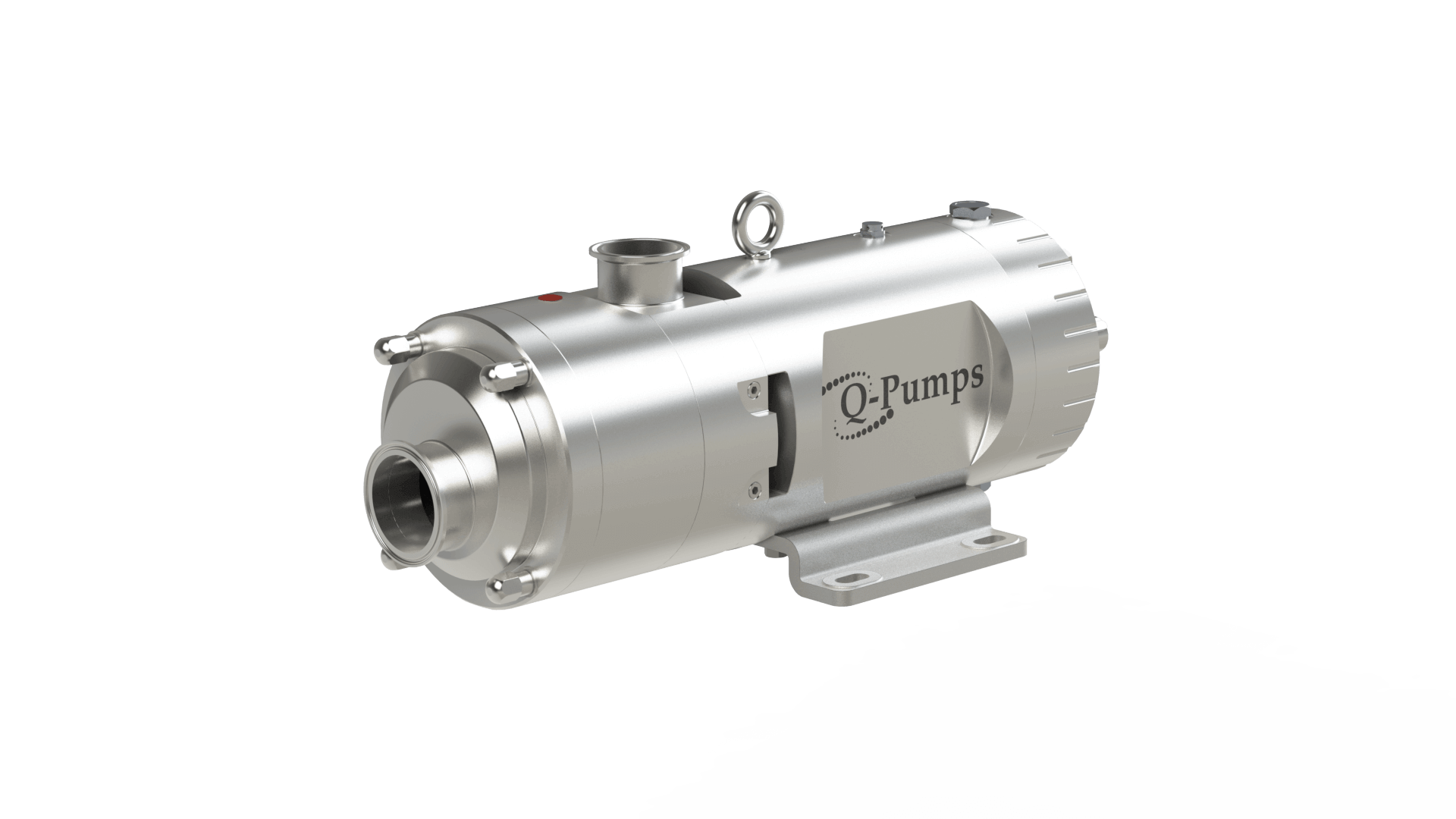

QTS SERIES
Twin Screw Pumps
Bringing innovation to positive displacement.

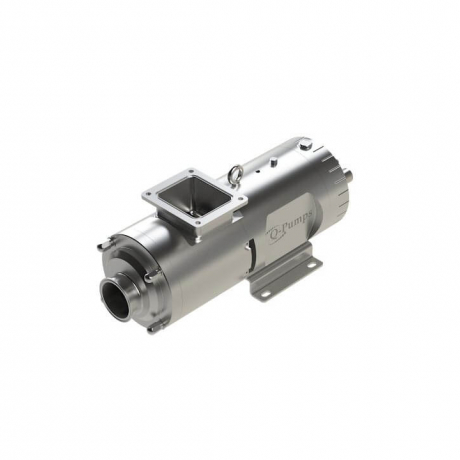

The QTS is a twin screw pump, 100% sanitary use and ideal as a CIP and Process pump, which reduces time and maintenance costs. Also available with rectangular inlet. Ideal for products with high content of air and gas. Certifications: 3-A, FDA and EHEDG
Advantages
- Pulsation-free
- 100% high-speed CIP
- Constant flow
- Easy assembly and disassembly
- Ideal for abrasive products
- No contact between casing and rotor working at high pressures
- Great suction capacity that eliminates low NPSH problems
- Gentle handling of cut-sensitive products.
- 100% drainable
- Bidirectional: It is possible to recover the product from the line due to being reversible
- Pulsation-free
- 100% high-speed CIP
- Constant flow
- Easy assembly and disassembly
- Ideal for abrasive products
- No contact between casing and rotor working at high pressures
- Great suction capacity that eliminates low NPSH problems
- Gentle handling of cut-sensitive products.
- 100% drainable
- Bidirectional: It is possible to recover the product from the line due to being reversible
Characteristics
- Self-priming
- Manufactured in 100% stainless steel , wet parts in SS 316L
- Speed up to 3000 rpm*
- Can handle products with up to 60% entrained air.
- Clamp connections (standard) and DIN, SMS, Bevel Seat connections available.
- Single and double mechanical seal
- Stainless steel rough use bearing box
- Option to increase size of suction and discharge connections
- Optimized rotors
- Narrow tolerances for vacuum capacity
- Stainless steel base available for NEMA or IEC
- Self-priming
- Manufactured in 100% stainless steel , wet parts in SS 316L
- Speed up to 3000 rpm*
- Can handle products with up to 60% entrained air.
- Clamp connections (standard) and DIN, SMS, Bevel Seat connections available.
- Single and double mechanical seal
- Stainless steel rough use bearing box
- Option to increase size of suction and discharge connections
- Optimized rotors
- Narrow tolerances for vacuum capacity
- Stainless steel base available for NEMA or IEC
Types of Seals
Mechanical Seal:
- Long-lasting
- EHEDG certified
- Can pump from underpressurized tanks (vacuum of -12psi/-.83 bar)
- High pressure and high speed handling
- Ideal for abrasive products
- Single and double
- CIP
O-Ring Seal:
- Economical choice
- Easy replacement
- Low-cost maintenance
- Ideal for soft products (glycerin, creams, greases, etc.)
- EPDM and Viton
Lip Seal:
- Handles abrasive products
- Doesn´t require lubrication
- Long-lasting
- EHEDG certified
- Can pump from underpressurized tanks (vacuum of -12psi/-.83 bar)
- High pressure and high speed handling
- Ideal for abrasive products
- Single and double
- CIP
O-Ring Seal:
- Economical choice
- Easy replacement
- Low-cost maintenance
- Ideal for soft products (glycerin, creams, greases, etc.)
- EPDM and Viton
Lip Seal:
- Handles abrasive products
- Doesn´t require lubrication
What can I use the QTS SERIES for?
Dairy products
Dough
Sauces
Confectionery
Meat
Pharmaceuticals
Oil
Honey
Pulps
Syrups
Purees
Personal care
QTS SELECTOR
*Selection just for reference
Reference Data
Flow: 1,230 gmp / 4,656 lpm
Pressure: 20 bar / 300 psi
Viscosity: 1,000,000 cP
Temperature: 120ºC / 248ºF
Available sizes
