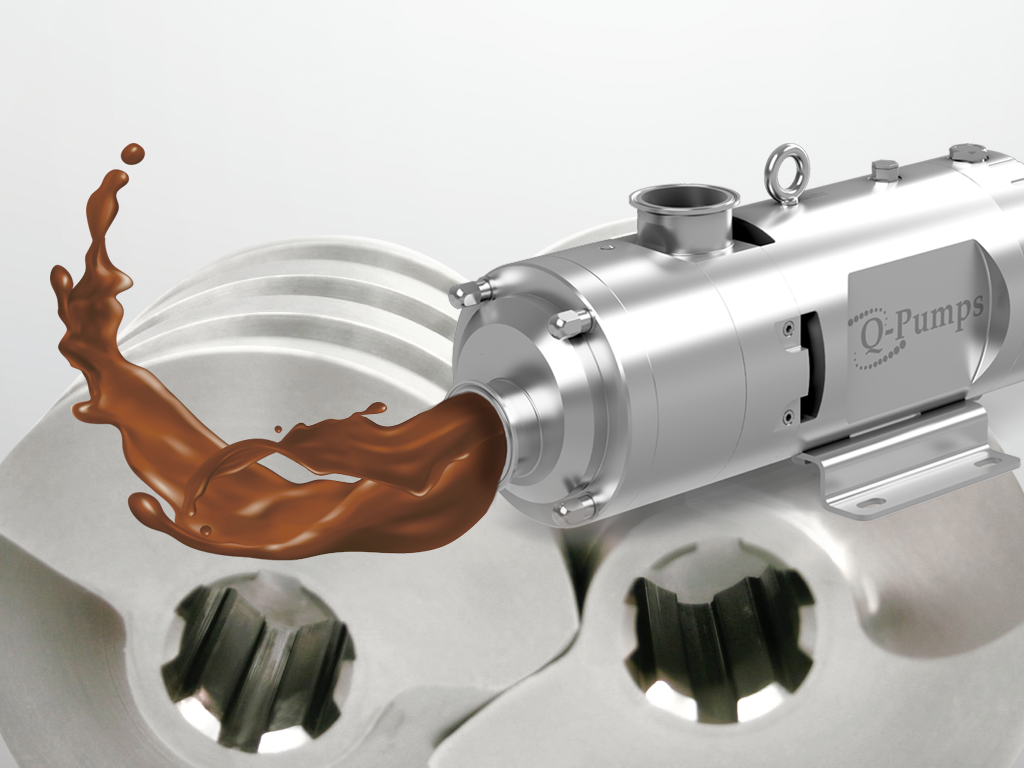

Q-Pumps twin screw pumps deliver maximum efficiency for pumping delicate or abrasive fluids. Manufactured entirely in stainless steel to meet the most stringent sanitary standards, these positive displacement pumps provide pulsation-free flow and unmatched versatility in industries like dairy, pharmaceuticals, and food processing.
Need a solution for viscous or shear-sensitive fluids?
-
How Twin Screw Pumps Work
1.1 Operating Principle
Two intermeshing helical screws rotate in opposite directions, creating axial movement that gently transfers product from suction to discharge.
Key Advantages:
- Non-contact between screws/casing: Reduces wear even at high speeds (up to 3,000 rpm).
- Self-compensating: Maintains consistent flow regardless of pressure changes.
1.2 Hygienic Design
- Fully drainable: Eliminates residue for CIP/SIP processes.
- Surface finish Ra ≤ 0.8 μm: Complies with EHEDG and 3A standards.
-
Rotor Configurations for All Fluid Types
|
Rotor |
Ideal Application |
Capacity |
|
2 Threads |
High flow, low pressure |
Solids up to 25 mm |
|
3 Threads |
Medium flow, moderate pressure |
Solids < 10 mm |
|
4 Threads |
High pressure, precise flow |
Solids-free fluids |
Real-World Example:
- Dairy: 3-thread rotor for fruit yogurt (50,000 cP).
- Chemicals: 4-thread rotor for abrasive resins (800,000 cP).
Unsure which rotor you need?
-
Competitive Advantages Over Other Technologies
3.1 Energy Efficiency
- Up to 30% lower consumption vs centrifugal pumps with fluids >10,000 cP.
- Low NPSH requirements: Ideal for installations with limited suction lift.
3.2 Proven Versatility
- Handles viscosities from 1 to 1,000,000 cP.
- Tolerates up to 60% entrained air (no cavitation).
- Bidirectional: Reversible for cleaning/special processes.
3.3 Key Certifications
- 3A Sanitary Standards: Food and beverage compliance.
- EHEDG: European hygiene certification.
- FDA: Food-grade materials.
-
Industrial Applications
4.1 Dairy Industry
- Pumping processed cheese, ice cream mix (preserves product structure).
- High-speed CIP: Reduces cleaning downtime.
4.2 Pharmaceutical & Cosmetics
- Sterile solutions: Pulsation-free flow for precise dosing.
- Gels/emulsions: No phase separation.
4.3 Specialty Chemicals
- Resins, adhesives: Hyper-viscous fluid handling.
- Abrasives: Particle-resistant design.
Don’t see your application?
| Visualize QTS brochure |
-
Predictive Maintenance
5.1 Warning Signs
- Amperage spikes: Potential seal wear.
- Elevated temperature: Abnormal bearing friction.
5.2 Critical Spare Kits
- Mechanical seals: Ceramic/metal options.
- Replacement rotors: Hardened 316L stainless steel.
Q-Pumps twin screw pumps are the optimal solution for:
✓ Sanitary processes demanding absolute hygiene.
✓ Complex fluids (viscous, abrasive, or solids-laden).
✓ Energy-efficient continuous operations.
