QIM SERIES

In-Line Mixers

The most versatile mixers in the market.

Perfectly created solutions for applications that require to be homogenized or disintegrated while being pumped. Centrifugal equipment in radial flow line designed under 3-A & EHEDG standards.

In-Line Mixers

Advantages

  • It’s different backplate options makes the QIM tailor-made for each application
  • A QC+ can be converted into a QIM

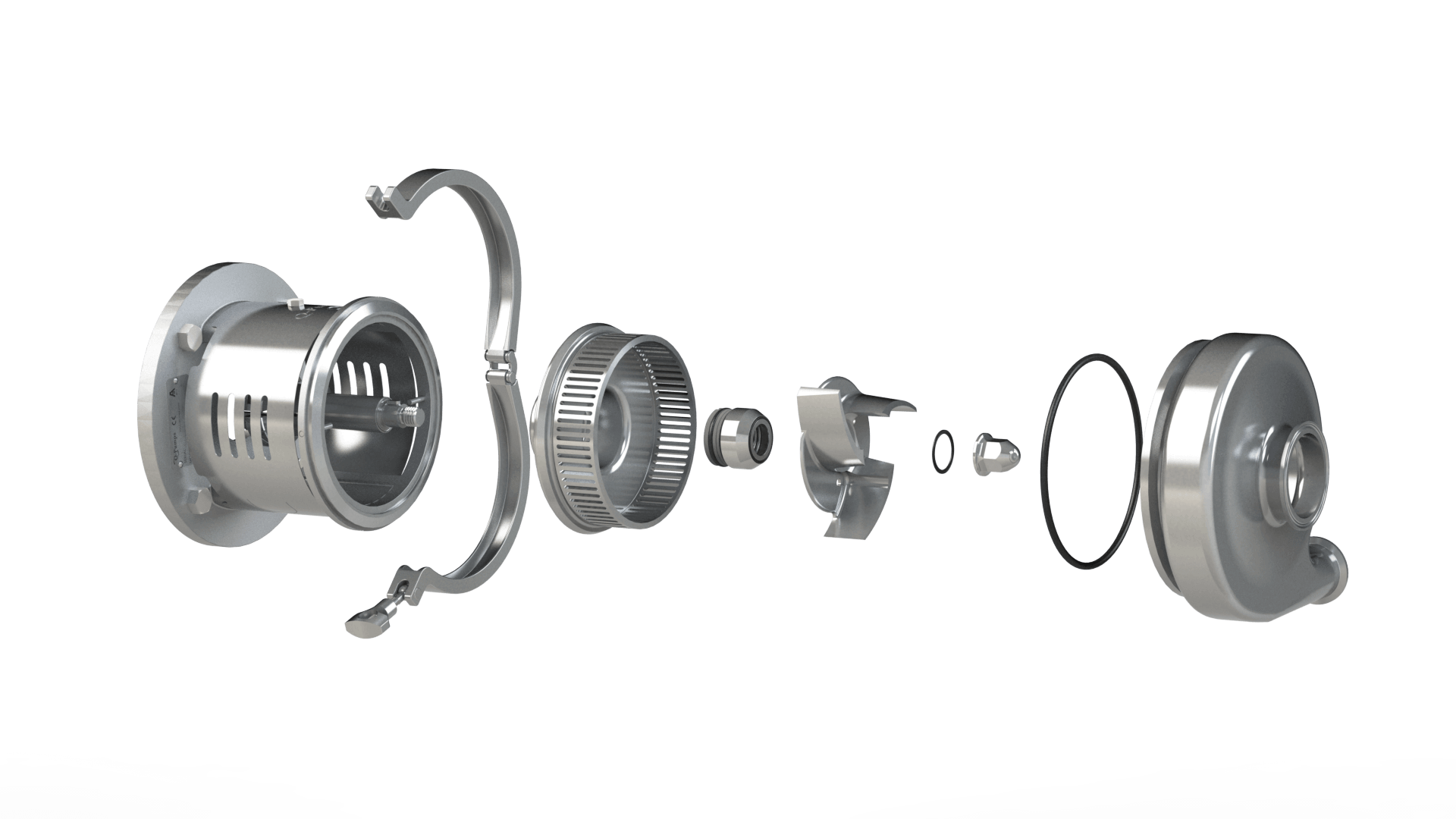

  • Thanks to its modular design, QIM Inline Mixers can be converted into a QDB Dry Blender by adding a table and a cone
  • It’s different backplate options makes the QIM tailor-made for each application
  • A QC+ can be converted into a QIM
  • Thanks to its modular design, QIM Inline Mixers can be converted into a QDB Dry Blender by adding a table and a cone
1

Characteristics

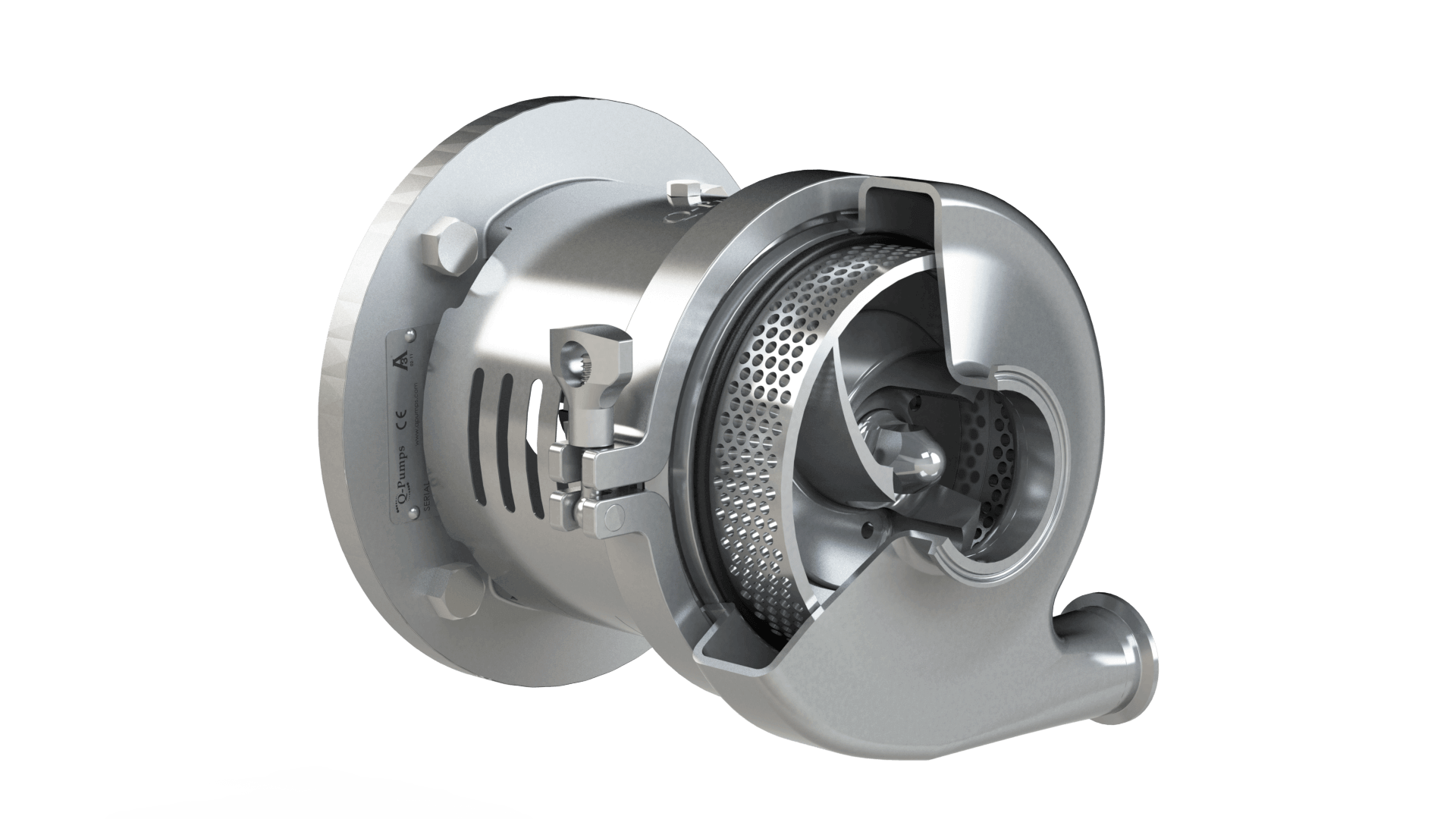

  • Has a semi-open impeller design to keep pressurized and achieve better lubrication in the mechanical seal.
  • Built in SS 316L with surface finish on all surfaces in contact with the fluid 32 Ra maximum
  • Completely drainable with the discharge in horizontal position
  • Use of o-ring to achieve a better seal
  • Easy maintenance and high efficiency
  • 5 different backplates options for better performance
  • Designed under 3-A and EHEDG standards



Backplate Options:

- Big Slots: For disintegrations of hard solids.

- Big Inclined Slots: For disintegration of small solids.

- Big Radial Slots: For mixing powders and liquids.

- Small Slots: For disintegrations of soft solids.

- Small Radial Slots: For emulsifying different liquids.

  • Has a semi-open impeller design to keep pressurized and achieve better lubrication in the mechanical seal.
  • Built in SS 316L with surface finish on all surfaces in contact with the fluid 32 Ra maximum
  • Completely drainable with the discharge in horizontal position
  • Use of o-ring to achieve a better seal
  • Easy maintenance and high efficiency
  • 5 different backplates options for better performance
  • Designed under 3-A and EHEDG standards



Backplate Options:

- Big Slots: For disintegrations of hard solids.

- Big Inclined Slots: For disintegration of small solids.

- Big Radial Slots: For mixing powders and liquids.

- Small Slots: For disintegrations of soft solids.

- Small Radial Slots: For emulsifying different liquids.

1

What can I use the QIM SERIES for?

  • Pastas
  • Sauces
  • Confectionery
  • Ice Creams
  • Dressings
  • Pulps
  • Syrups
  • Yeast
  • Jellies
  • Puddings
  • Purees
  • Ice cream mix
  • Cosmetics
  • Emulsifying
Reference Data

Flow: 352 gpm / 1,333 lpm

Pressure: 6 bar / 92 psi

Viscosity: 600 cP

Temperature: 10º to 150ºC / 14º to 302ºF

Available sizes

QIM 114, QIM 216, QIM 328
